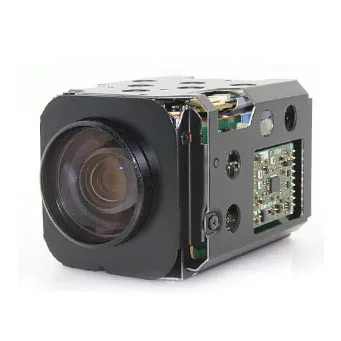

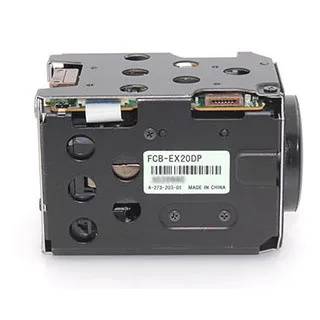

SONY FCB-EX20DP 12x ZOOM Color Block Camera PAL



Excellent Picture Quality, High Resolution Images Day/Night Function Compact and Lightweight Design Slow AE Response Function - Ideal for Abrupt Lighting Condition Changes Advanced Spherical Privacy Zone Masking with Mosaic Effect Powerful and Versatile Zoom Capability Multi-Line On-Screen Display Video Motion Detection Electronic-Flip (e:Flip) SMART Lens Control (Sony Modular Automatic Lens Reset Technology Electronic Shutter/Slow Shutter (1 to 1/10,000s, 22 steps) TV Distortion: 4.5% Customizable Settings Internal/External Sync 16 Bytes of Memory (for storing data such as the product serial number and camera/system ID number)

Camera Specifications Detail:
Image Device 1/3 type Super HAD II CCD
Effective Pixels Approx. 440,000 pixels
Digital Zoom 10x (120x with optical zoom)
Horizontal Viewing Angle 52º (wide end) to 5.4° (tele end)
Minimum Object Distance 15mm (wide end) to 800 mm (tele end)
Sync System Internal/External (V-lock)
Electronic Shutter 1/1 to 1/10,000 s, 22 steps
White Balance Auto, ATW, Indoor, Outdoor, One-push, Manual
Gain Auto / Manual (-3 to 28 dB, 2dB steps)
EV Compensation -10.5 to 10.5 dB (1.5 dB steps)
Backlight Compensation On/Off
Privacy Zone Masking On / Off (24 position, 8 position per screen, 14 colors & mosaic)
Character Generator Mode display On/Off (White Balance, Gain, etc.) Title display Max 11 lines (20 characters/ lines)
Flicker Cancel N/A
Focus System Auto (Sensitivity, normal, low), One-push AF, Manual, Infinity, Interval AF, Zoom trigger AF
Picture Effects E-Flip, Nega Art, Black & White, Mirror Image
Lens Mount 10x Optical Zoom (f=5.1mm wide to 51.0mm tele) F1.8 to F2.1
Video Output Specifications Detail:
S/N Ratio More than 50 dB
Minimum Illumination 1/60 s, 1/50s mode: 0.25 lx (typical) (F1.8, 50 IRE)
Signal System PAL
Horizontal Resolution On/Off (On: 530 TV Lines)
Interfaces Specifications Detail:
Camera Control Interface VISCA (TTL Signal level), baud rate: 9.6 Kb/s, 19.2 Kb/s, 1 or 2 stop bit selectable
General Specifications Detail:
Dimensions (W x H x D) 49.5 x 43.1 x 67.2 mm (1-13/16 x 1-3/4 x 2-3/4 inches)
Weight 140 g (5 oz)
Operating Temperature 0º C to 50ºC
Storage Temperature -20º C to 60ºC
Power Consumption 6 to 12 V DC/2.8W (motors inactive), 6.5W (motors active)
